MACHINE SHOP PRODUCT

Chip Screen Spider

Auger-driven screen sweeper for select Haas mills.

Chips can collect over the screen holes beside the auger, blocking coolant from draining back into the reservoir. The turning auger drives the Chip Screen Spider, sweeping those chips off the screen and into the auger instead of leaving them to be cleared by hand.

COMING SOON

Translucent orange Chip Screen Spider installed above the chip auger in a Haas VF-2

CONFIRM FITMENT

Measure before ordering

Fits Haas VF-Series mills that match all three measurements below. Verify all three measurements before ordering.

Screen holes3/16-inch diameter
Mounting-hole row2-3/8 inches from the auger, ±0.125 inch
Auger screw pitch5 inches, ±0.125 inch

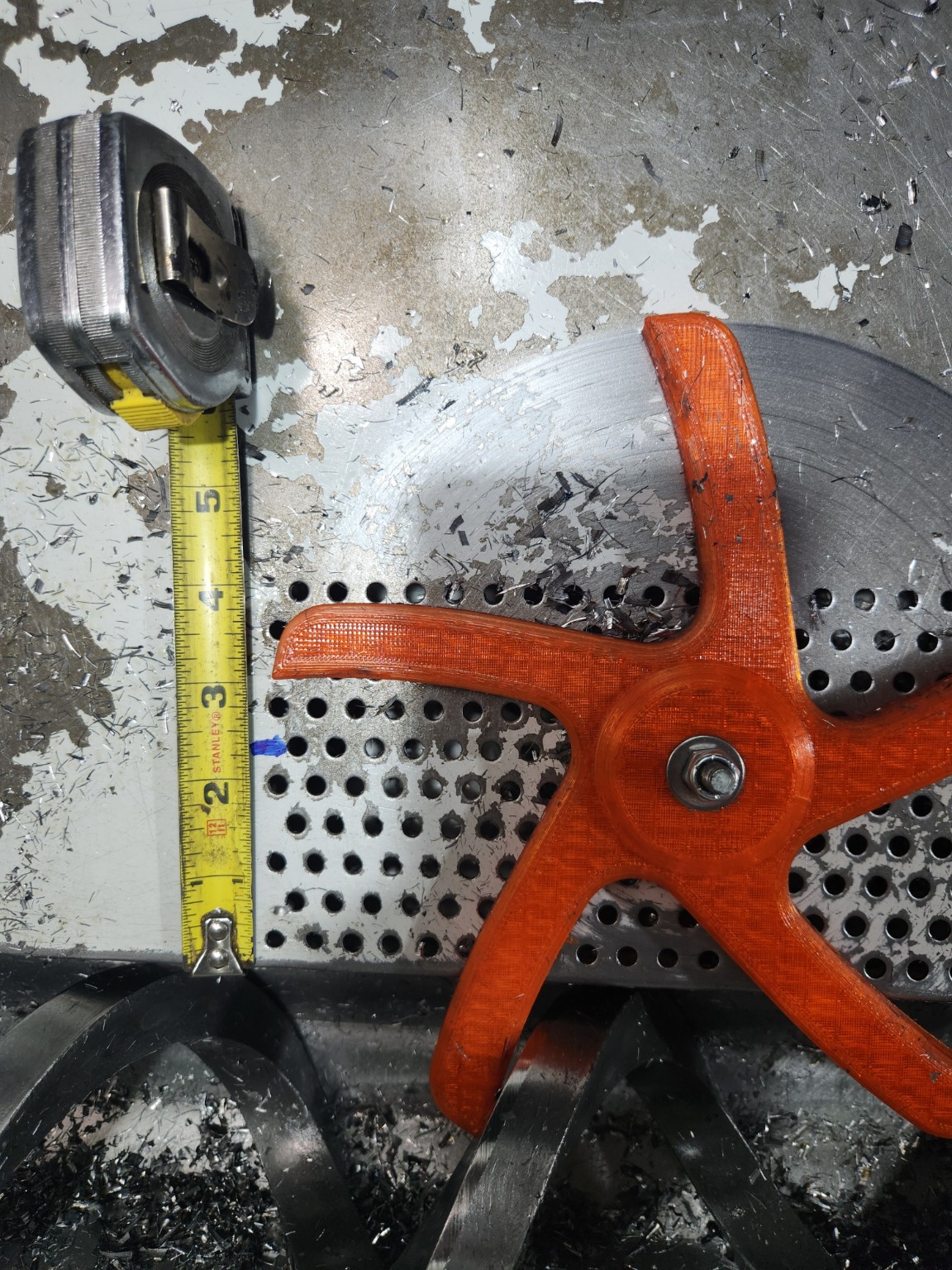

Tape measure showing the required chip-pan mounting-hole row location beside the auger — Measure from the auger to the center of the mounting-hole row. Required distance: 2-3/8 inches, ±0.125 inch.

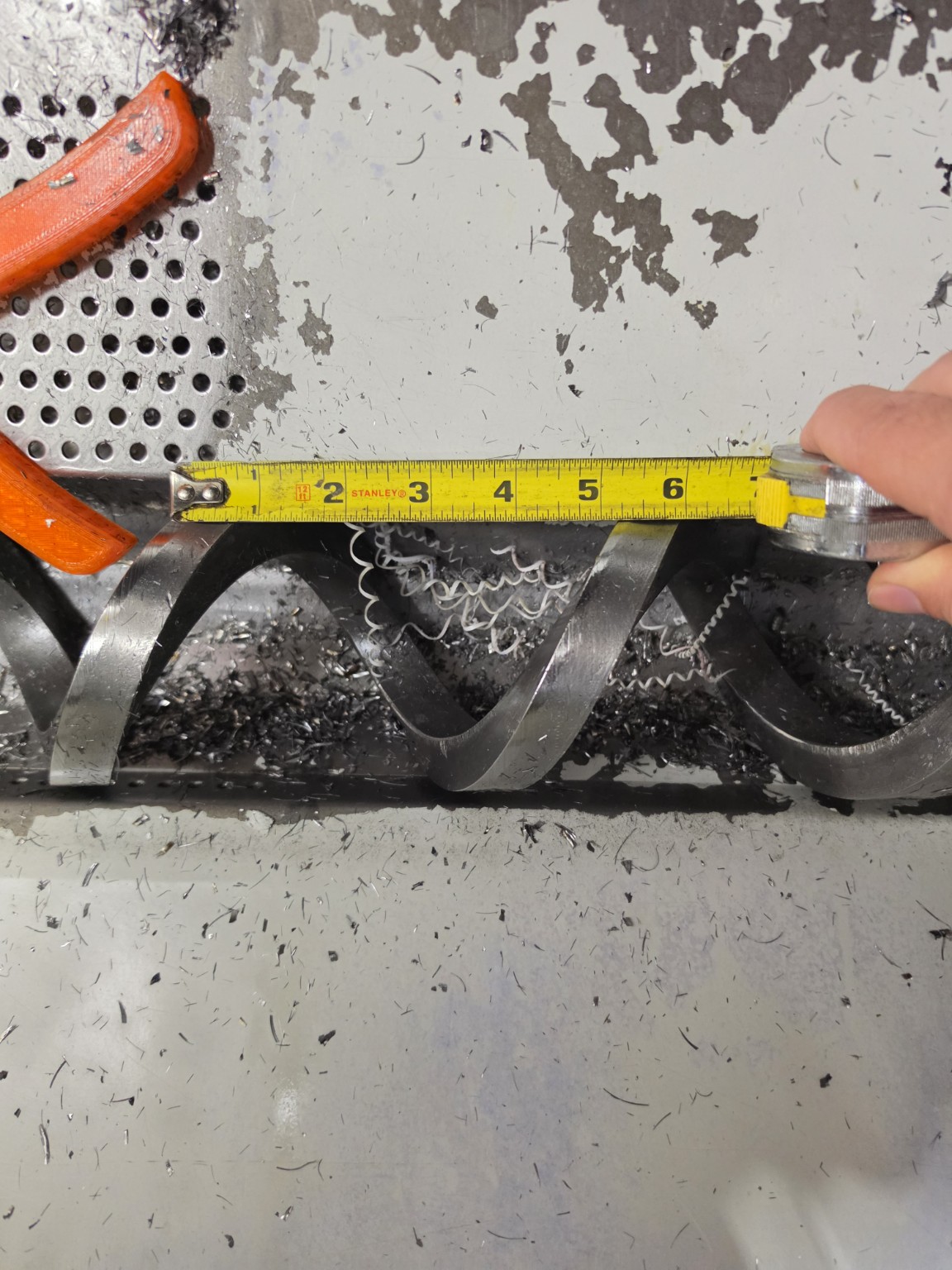

Tape measure showing the distance between corresponding points on adjacent auger flights — Measure from one auger flight to the corresponding point on the next flight. Required pitch: 5 inches, ±0.125 inch.

Fitment is determined by these measurements—not by machine model alone.

WHAT'S INCLUDED

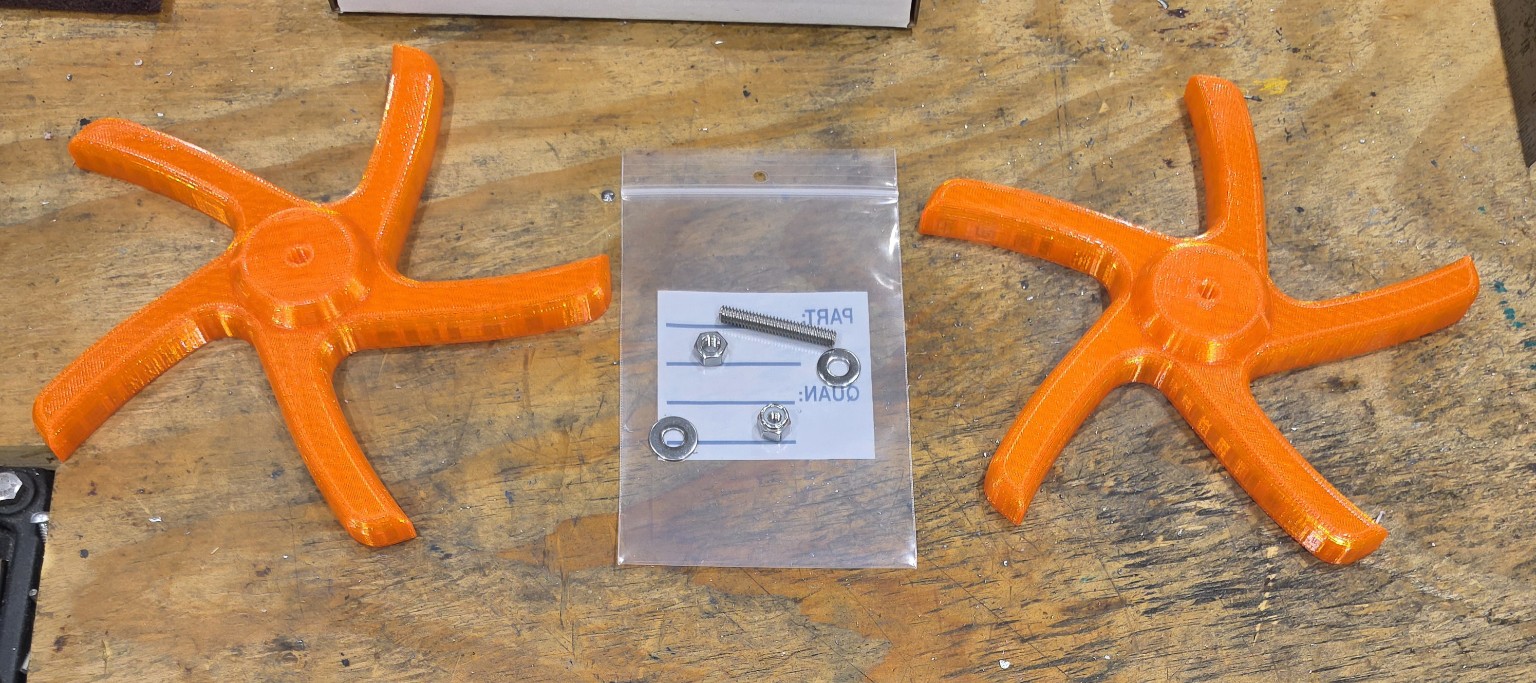

Two spiders and installation hardware

Two translucent-orange PETG Chip Screen Spiders
One stainless-steel installation hardware set
Printed installation instructions
QR code linking to the installation video

INSTALLATION

Uses one existing screen hole

Tap the specified existing 3/16-inch hole 1/4-20. The included threaded rod serves as the axle so the spider can rotate as the auger pushes its arms.

Correct mounting location is critical. Installing it in a different hole position may break the spider. Remove the spider before servicing or removing the auger.
