CHIP SCREEN SPIDER

Installation Instructions

Follow the video and illustrated steps below before operating the machine.

SAFETY WARNING

Before beginning installation, shut down the machine and follow the machine manufacturer's lockout/tagout procedures. Verify that all hazardous energy has been isolated. Wear appropriate personal protective equipment, including eye protection and cut-resistant gloves when handling chips or working inside the chip pan.

TOOLS NEEDED

Gather these tools before starting

1/4-20 tap and tap holder
Tape measure
7/16-inch wrench

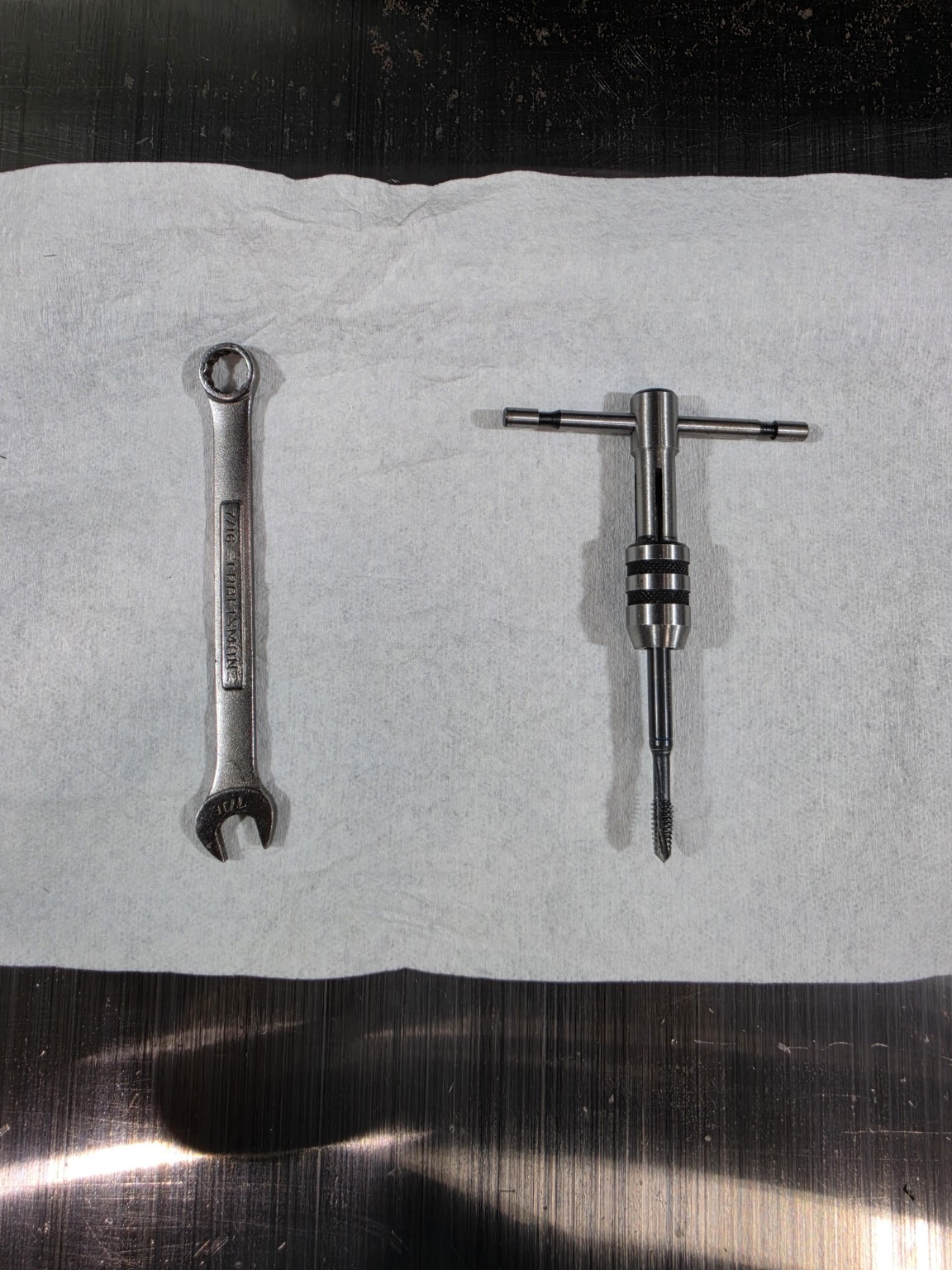

Tape measure, 1/4-20 tap and tap holder, and 7/16-inch wrench

Select and tap the mounting hole

Locate the 2-3/8-inch mounting row on the side away from the conveyor chute. Start with the center hole in this row. Another hole in the row may be used to adjust the Spider's side-to-side position. Tap the selected hole 1/4-20.

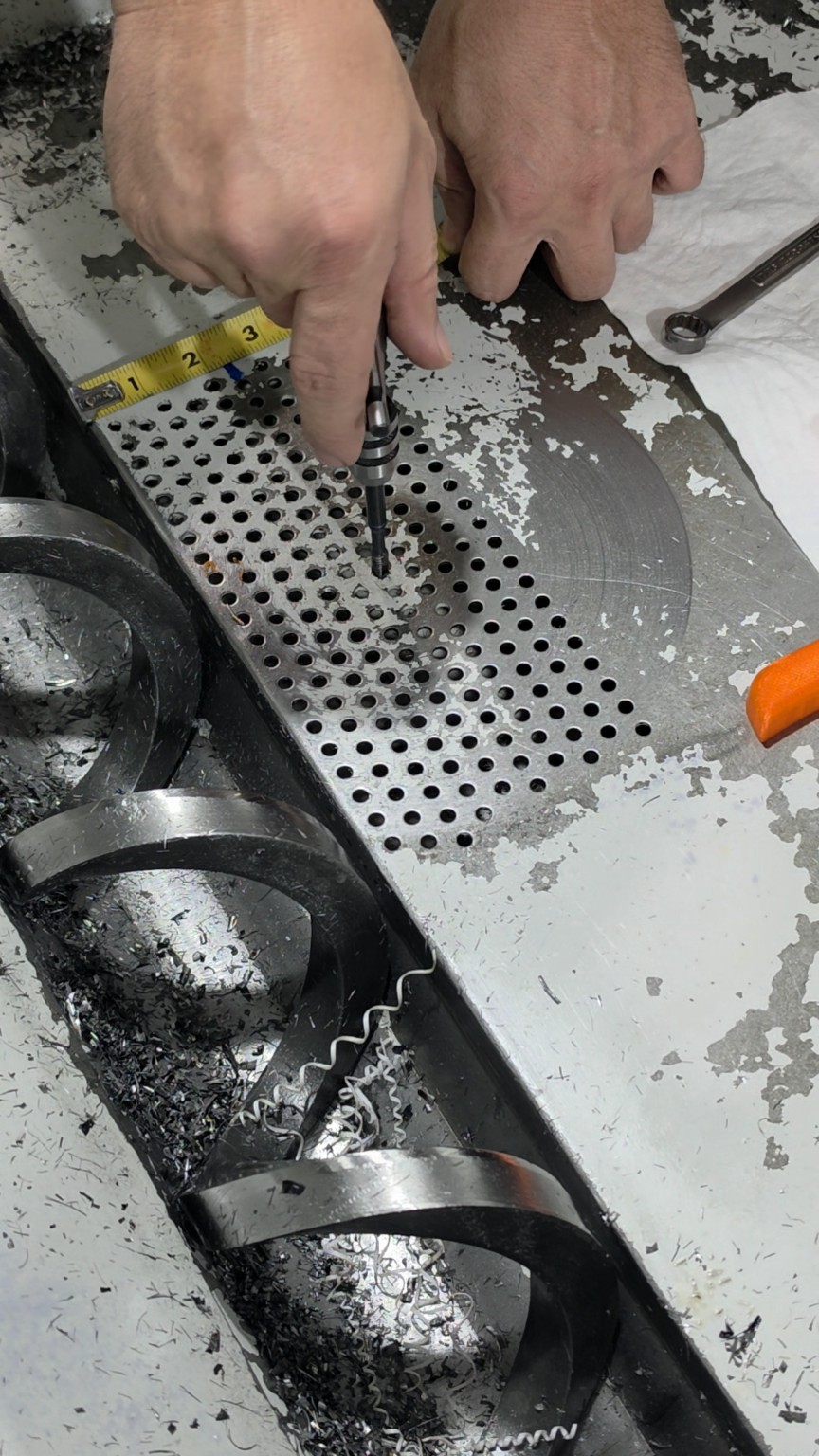

Tapping the selected chip-pan mounting hole with a 1/4-20 tap

Prepare the axle

Thread the jam nut approximately 1/4 inch onto the axle, then place a flat washer on the axle.

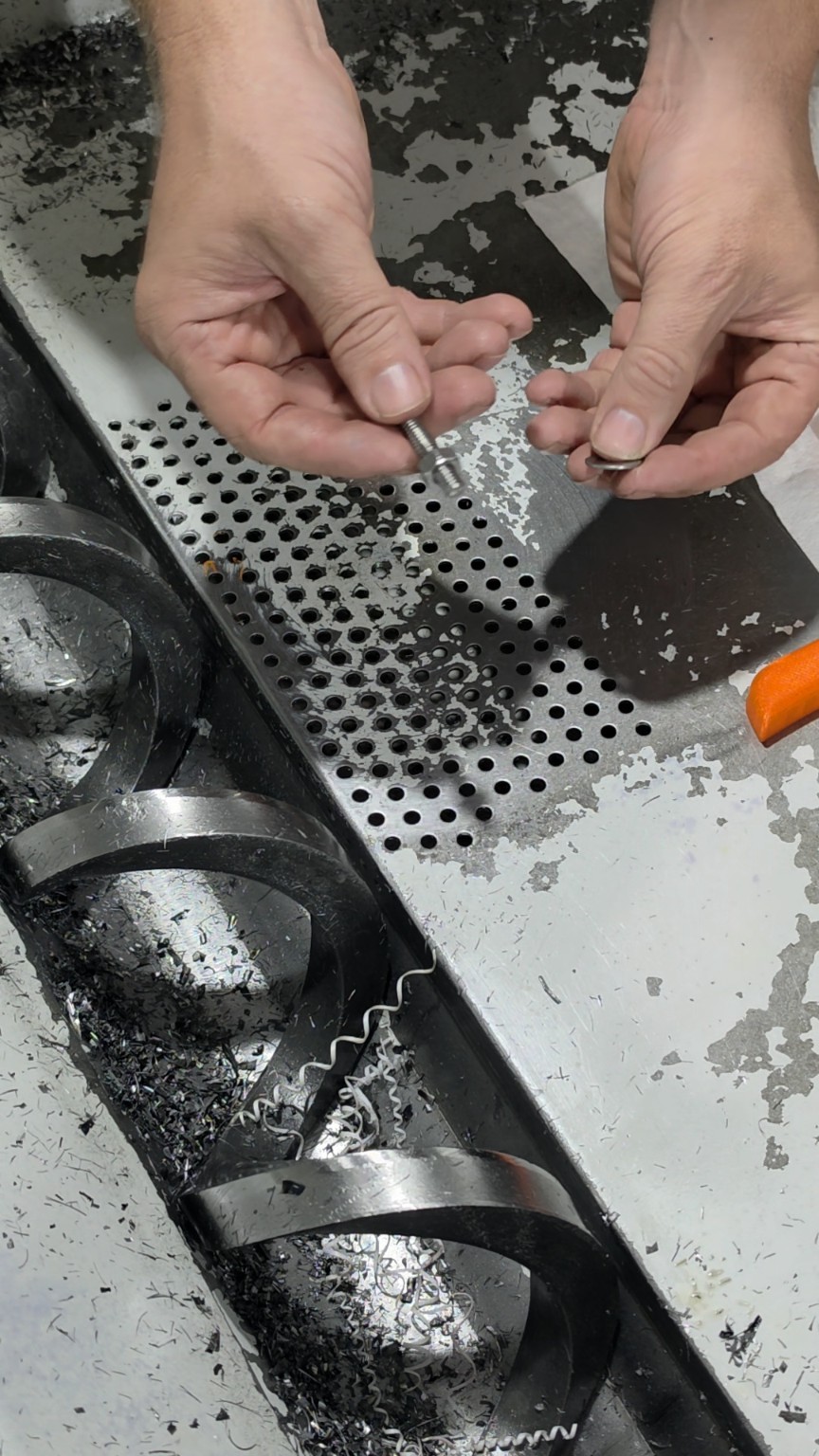

Jam nut threaded onto the Spider axle with a flat washer installed

Install the axle

Thread the axle into the tapped mounting hole with the washer between the jam nut and the chip pan. Tighten the jam nut against the washer to prevent the axle from rotating.

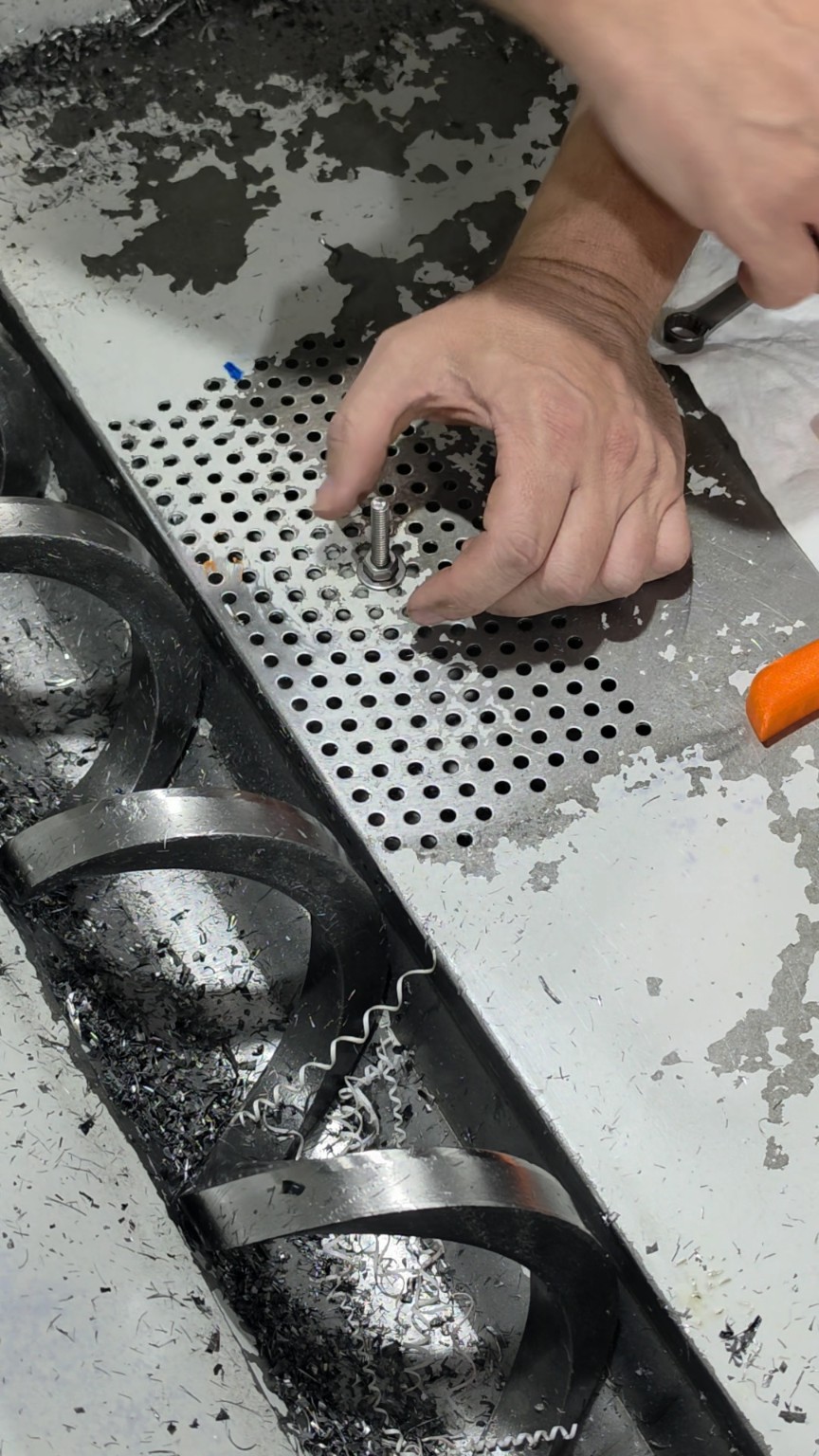

Spider axle installed in the chip pan with the jam nut tightened

Install the Spider

Slide the Spider onto the axle with the flat side of the Spider facing the chip pan.

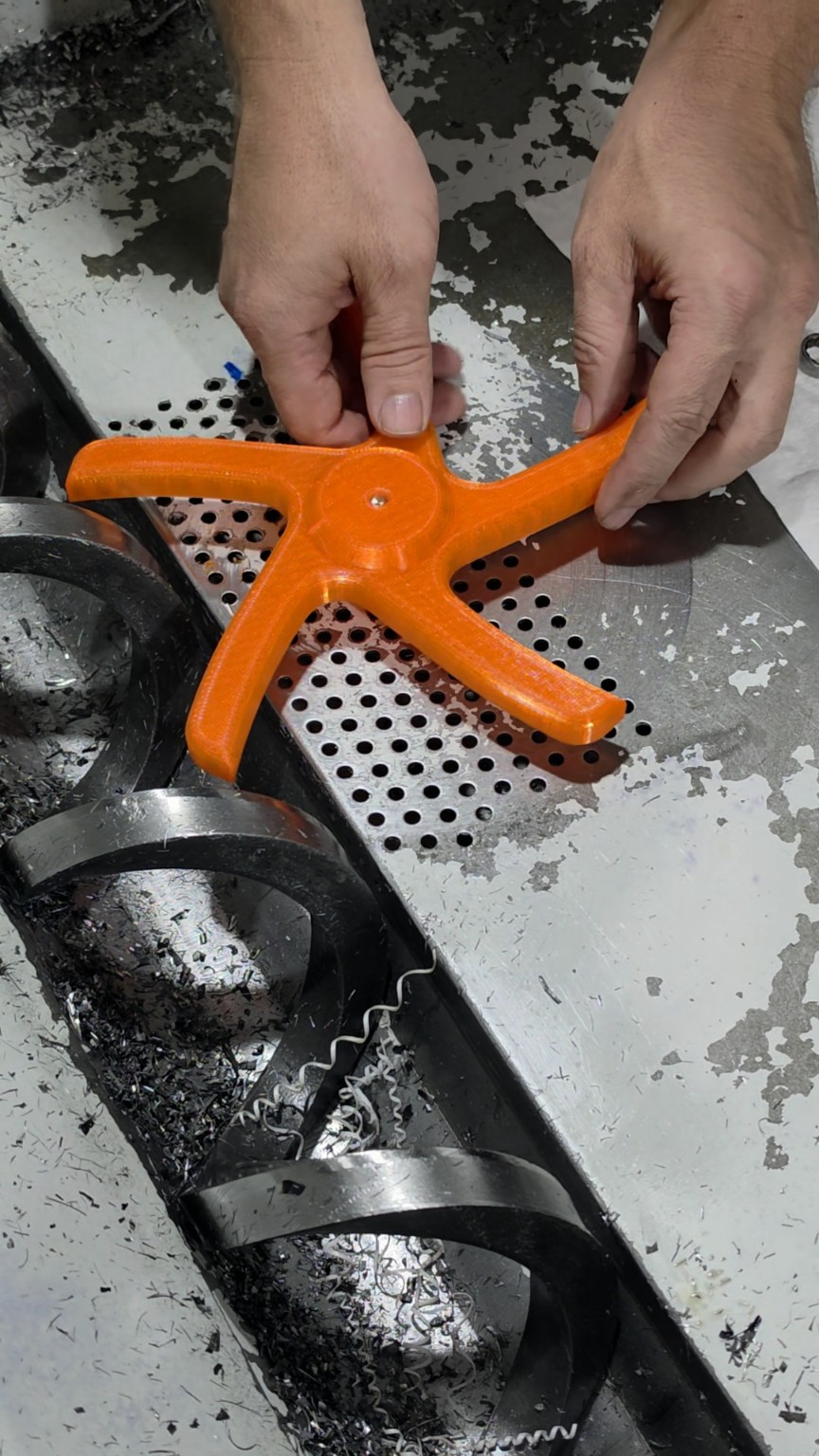

Chip Screen Spider placed on the installed axle with its flat side toward the chip pan

Install the top washer and Nylock nut

Place the second flat washer on the axle, then thread the supplied Nylock nut onto the axle.

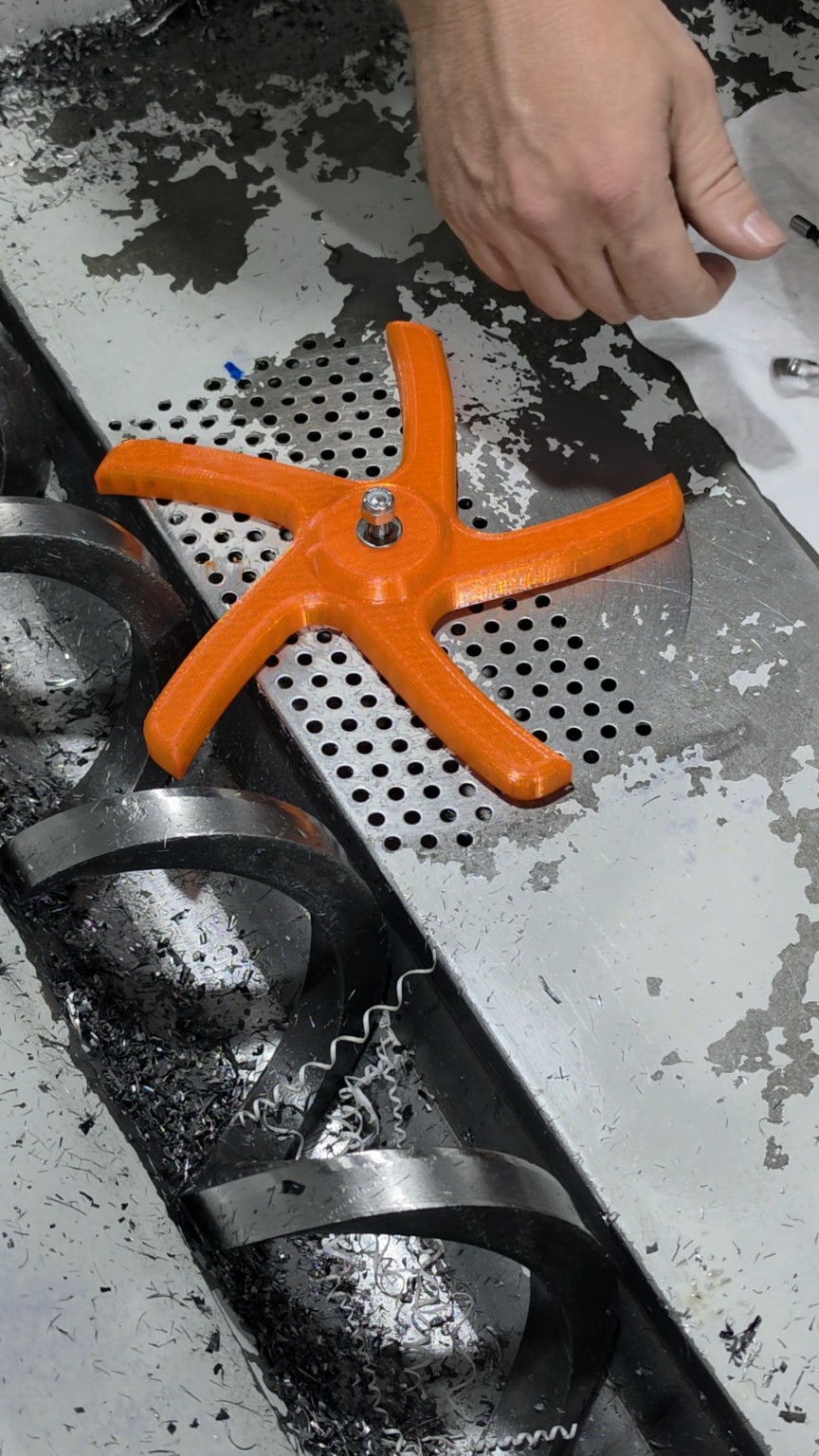

Top flat washer and Nylock nut installed on the Spider axle

Set the clearance and check rotation

Adjust the Nylock nut to leave 1/32-1/16 inch of clearance between the Nylock nut and the top flat washer. This allows slight up-and-down movement while preventing excessive vertical movement. Rotate the Spider by hand to confirm it moves freely without contacting the chip pan or other components.

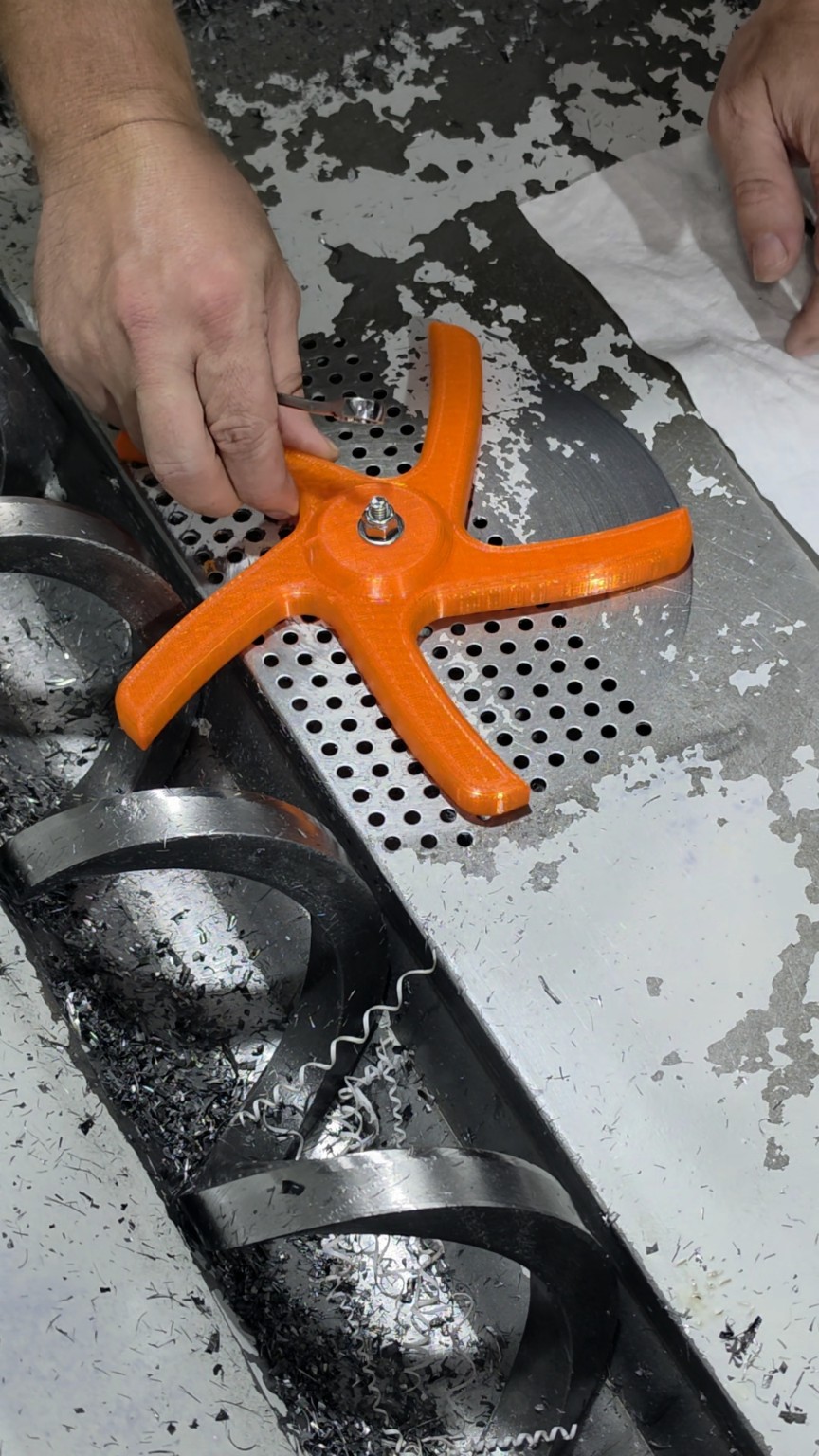

Finished Chip Screen Spider installation showing clearance above the top washer

Do not operate the machine unless the Spider rotates freely and all hardware is secure.
